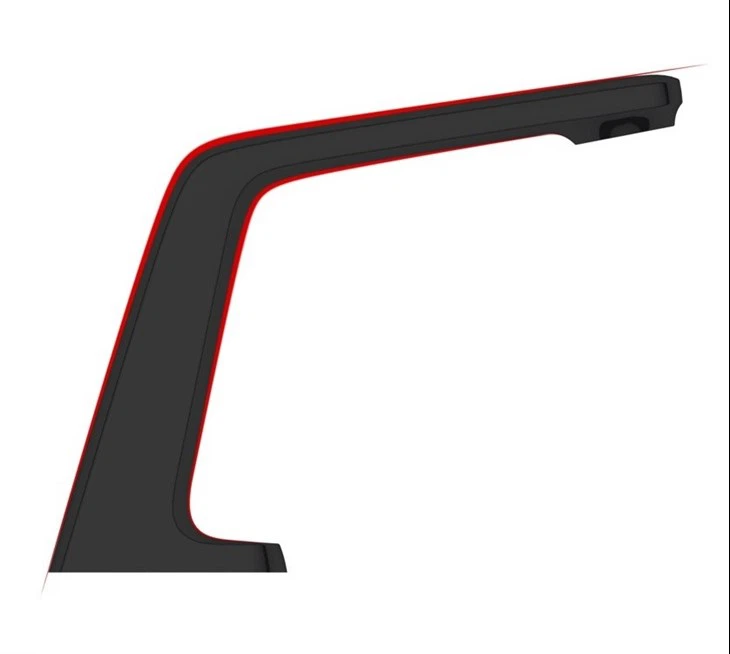

Motion Sensor Sink Faucet
Description
Technical Parameters
Introducing the motion sensor sink faucet, an innovative solution designed to simplify your daily life. This cutting-edge product features motion sensors that eliminate the need to touch the faucet handle when turning the water on or off. With this hands-free experience, you'll enjoy a convenient and hassle-free sink usage, especially when your hands are messy or covered in grease. Embrace the future of sink faucets with this revolutionary motion sensor technology.
The sink faucet with a motion sensor is crafted using superb quality, eco-friendly materials, making it an ideal choice for sustainability-conscious individuals. Its durability is unparalleled and guarantees long-lasting performance, which is excellent for the environment.
Our sink faucet with a motion sensor comes equipped with a low voltage indicator to help conserve battery life. If the battery is drained, the faucet will no longer dispense water and the indicator light will start flashing. This prompts users to replace the battery to ensure that the faucet functions as intended at all times.
If you notice the indicator light flashing continuously, it could be a signal that your batteries are running low and need to be replaced soon. This feature serves as a reminder for users to switch out old batteries for new ones.
Step 1: Remove the battery case cover.
Step 2: Replace with 4 AA alkaline batteries.
（）。
*Do NOT mix new old batteries.
Automatic on/off
Motion sensor sink faucets provide both convenience and improved hygiene by automatically turning on and off.
2. Time Limit: Washing time is set for 60 seconds.
Battery and Main Power Supply
1.Power supply: DC6V/AC110-240V
2. Compact size
If the touchless sink faucet loses power, its valve will immediately halt the water supply without any human intervention. This innovative feature ensures that water wastage is minimized in case of sudden power outages.
Technical data of motion sensor sink faucet:
|
No. |
Items |
Parameters |
|
01 |
Power |
DC4.5-6.4V4AAAC 110-240V5.0-6.5V/1A（＜60mW）。，。 |
|
02 |
Standby power consumption |
≤33uA |
|
03 |
Sensing distance |
1,Adjustable sensor range:15-45CM The default sensor distance is set at 25CM, which is applicable to a standard 29*29cm white board. It is important to maintain this specific distance for accurate measurements. To ensure that the generated content remains highly similar, the arrangement of the information should be rearranged to maintain coherence and clarity. |
|
04 |
Sensitivity |
0.512s |
|
05 |
Pulse width |
≤35ms |
|
06 |
Security stop |
60s ±6s |
|
07 |
Working temperature |
0~50℃ |
|
08 |
Storage temperature |
-40~80℃ |
|
09 |
Relative humidity |
10%~95% |
|
10 |
Light display |
1.LED light flashes 5 times when power-on 2.LED light flashes once when entering the induction zone |
|
11 |
Instruction |
Hands enter into the sensing range,water flows;hands leave, water stops. |
|
12 |
Stability |
Voltage stability:the sensing distance change does not exceed ±10% when power drops from 6.4V to 2.4V, Temperature drift stability:The temperature rises from 0℃ to+70℃,the sensing distance change does not exceed±10% |
|
13 |
Anti-interference |
Install multiple units of the same model at a distance of 50cm,and when they are turned on and working at the same time, they should not interfere with each other and cause malfunctions; The AC power supply is connected to the same power outlet with 1kw hair dryer at and light 40w electronic ballast fluorescent lamp ,the DC power supply with 1kw hair dryer at and light 40w electronic ballast fluorescent lamp of a distance of 2m,and the appliance is turned on and off 3 times without malfunction Set the light source in the direction of 45°to make the illuminance reach 50lx,and the sensing distance is not more than ±10% |
|
14 |
Switch Response time |
Open≤1s,close≤1.5s |
|
15 |
Working Pressure |
0.05MPa-0.6MPa |
|
16 |
Flow characteristic |
Static pressure 0.1±0.01Mpa.Q=4.0L/Min(Q is flow rate water efficiency level 3) |
|
17 |
Life Span |
Dynamic pressure 0.4±0.02Mpa;Control flow≥0.1L/s: life test>500,000 circles |
|
18 |
Anti-installation load |
20N*M |
If there is any Abnormal, you can check the attached picture and solve the problem.
